Brush DC motor 90V











Quick Details

  • Usage: Boat, Car, Electric Bicycle, Fan
  • Certification: CE, UL
  • Type: dc motor
  • Torque: 2.05Nm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Totally Enclosed
  • Speed(RPM): 1750rpm
  • Continuous Current(A): 5.56A
  • Output Power: 1/2Hp
  • Voltage(V): 90V
  • color: blue
  • G.W: 8.5kg
  • carton size: 34*19*20.5cm

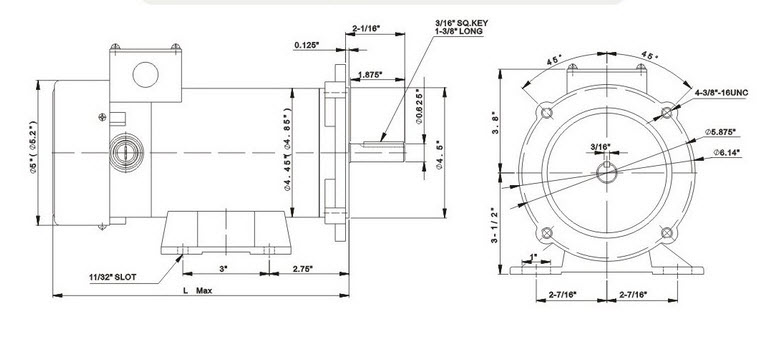

◊ Drawing

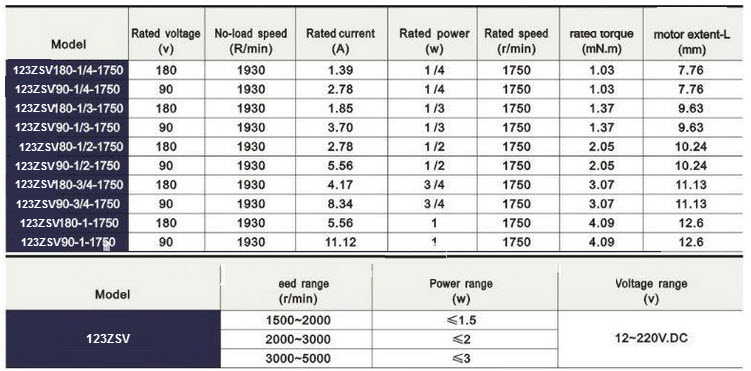

◊ Specification

◊ Model Description

113

ZSV

180

-

1/4

-

1750

1.

2.

3.



4.



5.


1.Body OD:158-fuselage outside diameter of 158mm

2.ZSV:ferrite permanent magnet DC motor

3.Voltage:180-180V.DC input

4.Power:1/4-rated output power of 1/4HP

5.Speed:1750-Rated speed 1750rpm
